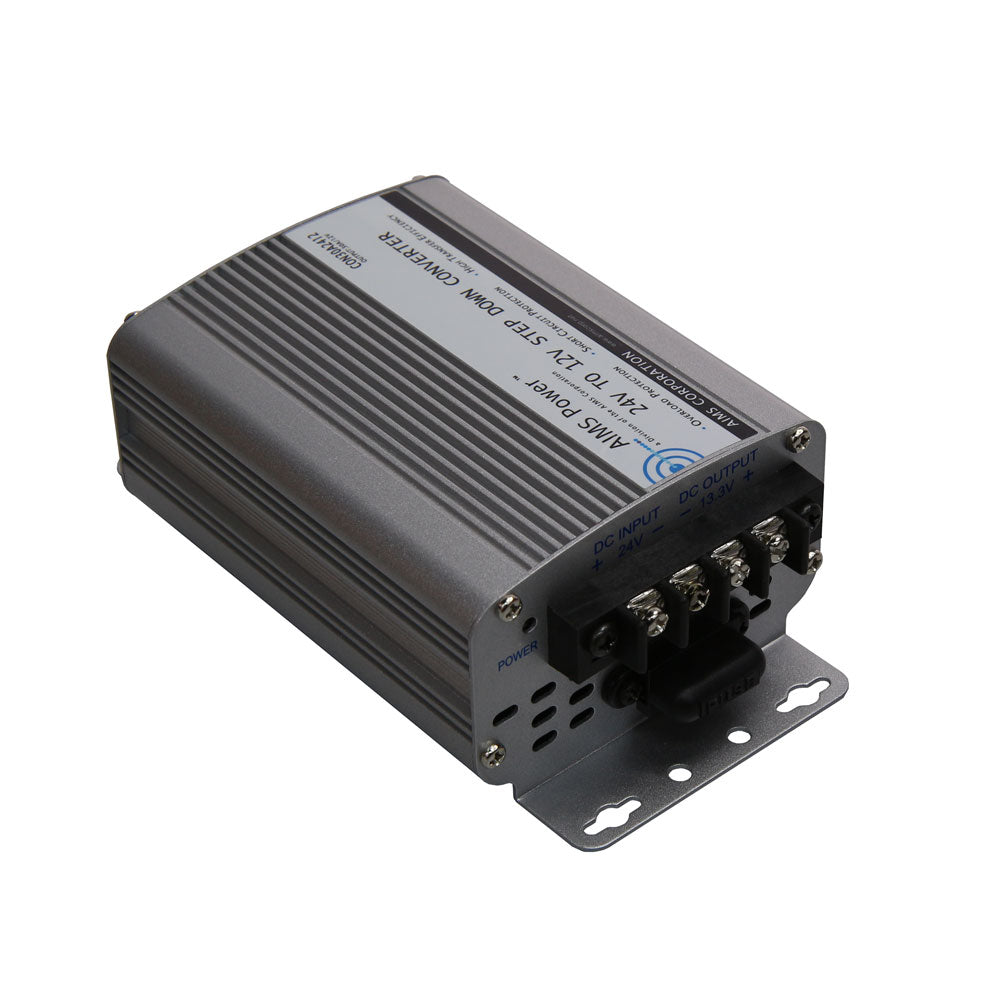

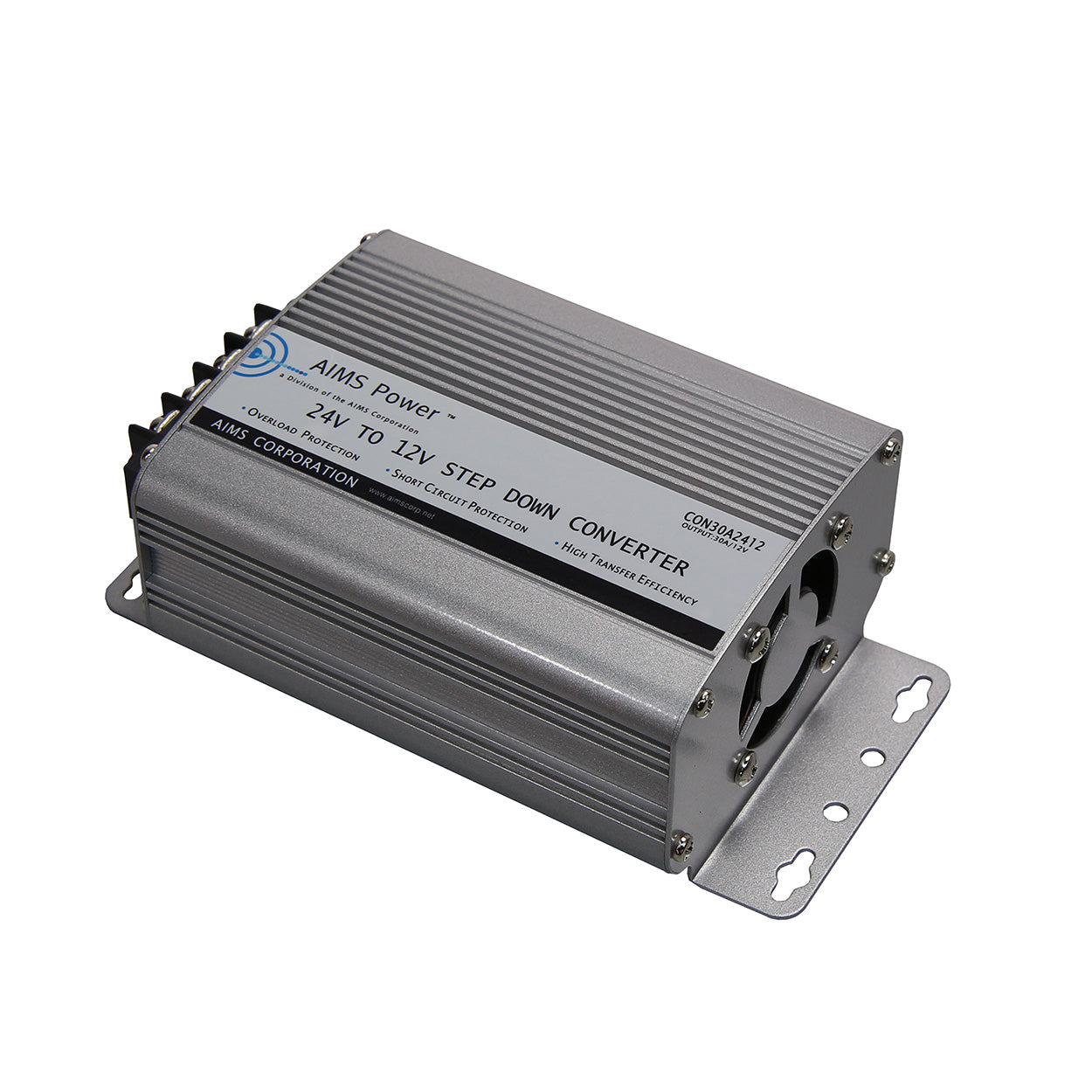

AIMS Power 40 Amp 24V to 12V DC-DC Converter

AIMS Power 40 Amp 24V to 12V DC-DC Converter Overview This compact step-down DC-DC converter has an input voltage of 24 VDC nominal (range 20 VDC to 37 VDC) to a highly regulated output voltage of 12 VDC nominal at 40 Amps. This a non-isolated 40 amp DC-DC converter and is made for use in negative ground systems. These units have CE EN61000-6-3:2007+A1:2011 and CE EN61000-6-1:2007. AIMS Power 40 Amp 24V to 12V DC-DC Converter Features • 40 Amp 24 volt to 12 volt dc to dc converter • Green LED on front panel to confirm power on • Terminal block for DC input/output • Over Temperature protection • Over Load protection • DC Input Low Battery Shutdown • DC Input High Battery Shutdown • DC Output Short Protection • DC Output Over Current Protection • DC Output Over Voltage Protection • Transformer based • Aluminum case for optimal cooling • CE EN61000-6-3:2007+A1:2011 • CE EN61000-6-1:2007 Warranty & Support • Instruction manual • Free 1 year tech support • 1 Year Warranty Parts and Labor AIMS Power 40 Amp 24V to 12V DC-DC Converter Specifications • DC Input Voltage: 20-37 Vdc • DC Output Voltage: 12.5-13.5 Vdc • Output Current: 40 amps • Output Current Max: 48 amps • Non-Isolated • Conversion Efficiency: 90% • DC Input Low Battery Shutdown: 18 +/- 1 V • DC Input High Battery Shutdown: 38Vdc • DC Input Over Current Protection: 30A Fuse • DC Input Polarity Protection: Fuse Protected • Over Temperature Protection: 150 +/- 5 degrees F • DC Output Short Protection: Yes • DC Output Over Current Protection: 48 amps • DC Output Over Voltage Protection: TVS Diode Dimensions • Unit Weight: 1.0 lbs.
